Export & Import a Room

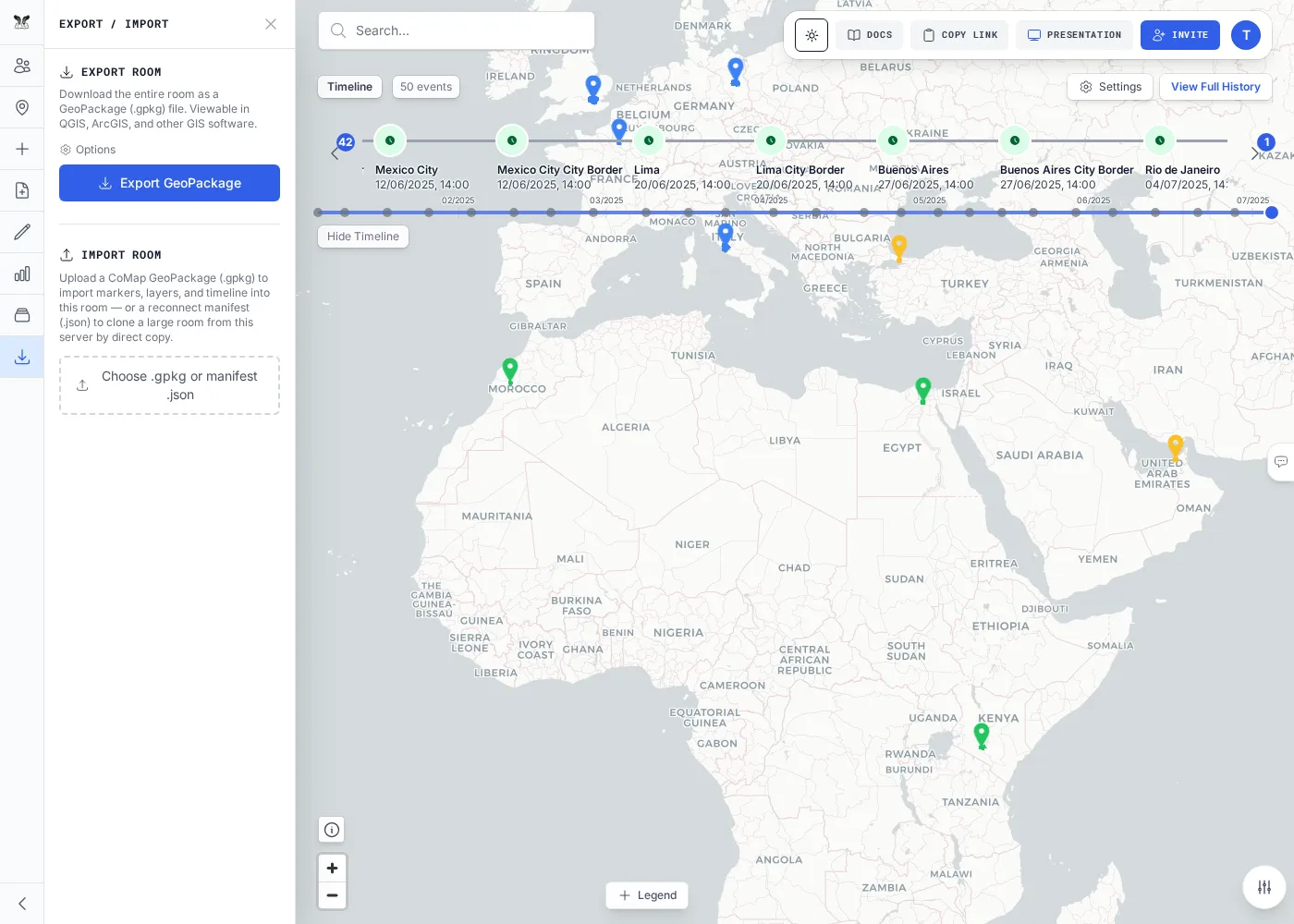

The Export / Import tab (in the left icon rail) saves a whole room — markers, layers, drawn shapes, and optionally rasters — as a single GeoPackage, and restores one back into a room.

Export a room

1. Open the Export / Import tab and choose what to include — you can add the raster GeoTIFFs and pre-generated tiles, or export just the vector content.
2. Export. You get a .gpkg file that opens directly in QGIS, ArcGIS, or any GeoPackage-aware tool.

Small and normal-sized rooms export synchronously (the file downloads when it’s ready). Very large rooms switch to an asynchronous background job — the export runs server-side and you download the finished artifact when it completes. The panel tells you which mode a room will use.

Import a room

Import accepts a .gpkg (a room export) or a reconnect manifest (.json, see below).

1. Open the Export / Import tab and choose your file.
2. Confirm. The room’s contents are replaced with the imported data.

Caution

Importing into a room that already has content overwrites it and resets the timeline — import into a fresh room if you want to keep the current one. GeoPackage import is capped at 2 GB; above that, use a reconnect manifest.

Clone a large room (reconnect manifest)

For rooms too large to move as a single GeoPackage, export produces a small reconnect manifest (.json) instead of bytes. Importing that manifest clones the room by copying data server-side — no re-processing, no multi-gigabyte download. The clone is same-instance only, and its storage counts against the new owner’s quota.

Do it via the API

Export / import

# Export the whole room to a GeoPackage (empty body = full room state)  — needs `read`
curl -X POST "$API/api/rooms/$ROOM/export" -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" -d '{}' -o room.gpkg

# Import a GeoPackage into the room (≤ 2 GiB)  — needs `write`
curl -X POST "$API/api/rooms/$ROOM/import" -H "Authorization: Bearer $TOKEN" \
  -F "file=@room.gpkg"

Large rooms (async)

# Probe which mode to use
curl -s "$API/api/rooms/$ROOM/export-size" -H "Authorization: Bearer $TOKEN"
# → { "recommended": "sync" | "async" }

# Start an async export, poll it, then download the artifact
curl -X POST "$API/api/rooms/$ROOM/export-jobs" -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" -d '{}'                              # → 202 { jobId }
curl -s  "$API/api/rooms/$ROOM/export-jobs/<jobId>" -H "Authorization: Bearer $TOKEN"          # → status
curl -s  "$API/api/rooms/$ROOM/export-jobs/<jobId>/artifact" -H "Authorization: Bearer $TOKEN" -o room.gpkg

See the Export, Import & Clone reference for the full endpoint list.

Next steps

API OverviewAuthenticate and drive a room over HTTP.
