Room API Tokens

A room API token (prefix cmap_) lets a script or tool operate on one room without a browser session. It’s the recommended way to automate uploads, imports, marker creation, and exports.

Mint a token

Only the room owner can create tokens (a token can’t mint tokens).

In the app

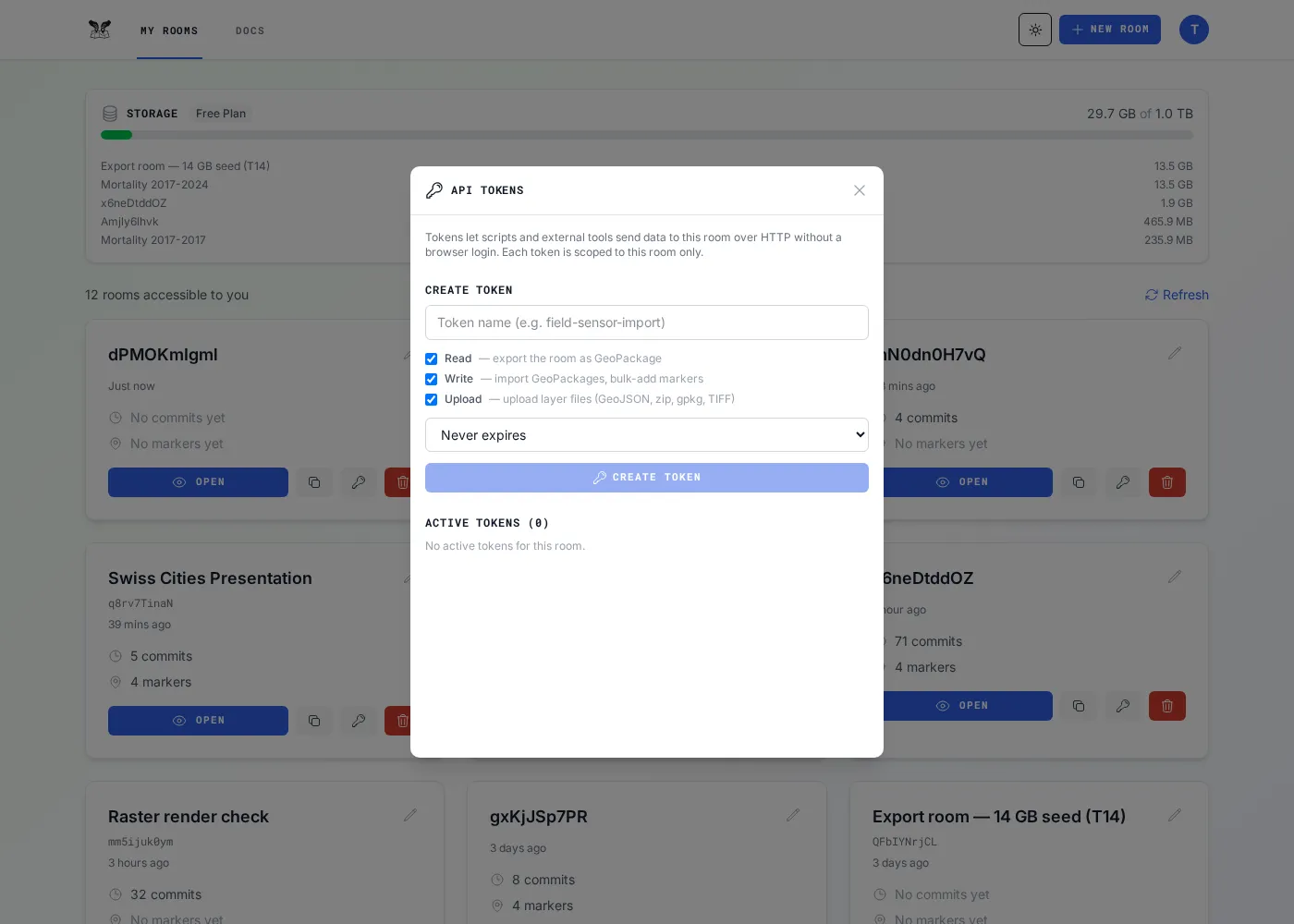

1. Go to My Rooms and click the API (key) button on the room’s card.



2. Choose the permissions you need and create the token.

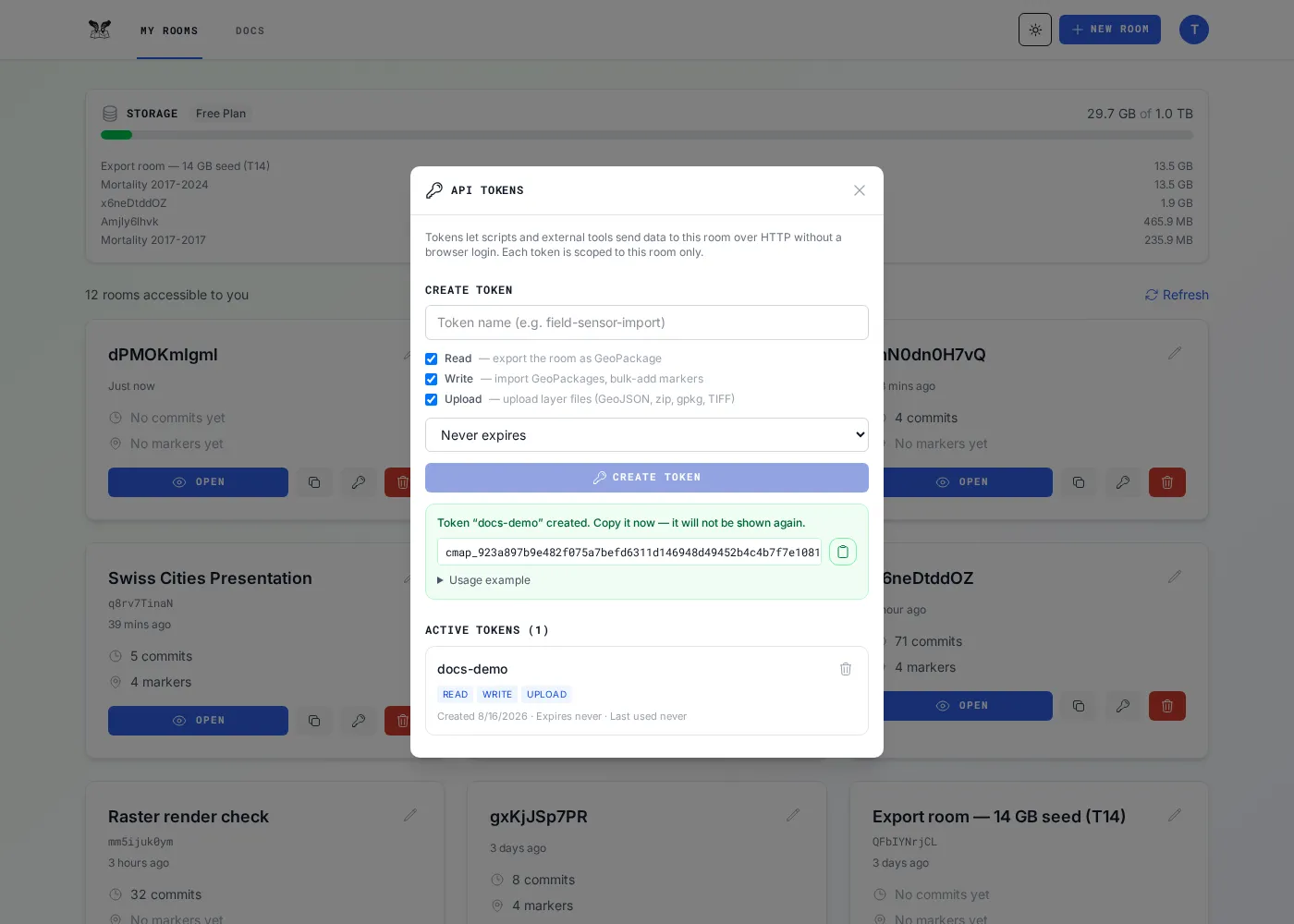

3. Copy the secret now — it’s shown only once.



Over HTTP

Needs your owner JWT (see Overview):

curl -X POST "$API/api/rooms/$ROOM/api-tokens" \
  -H "Authorization: Bearer $JWT" -H "Content-Type: application/json" \
  -d '{"name":"my-script","permissions":["read","write","upload"],"expiresInDays":30}'
# → { "token": "cmap_…", "id": "…" }   (copy the token — it is not retrievable again)

expiresInDays is optional (1–365); omit it for a token that never expires.

List them with GET /api/rooms/$ROOM/api-tokens; revoke with DELETE /api/rooms/$ROOM/api-tokens/<tokenId> (takes effect immediately). Both are owner-only, exactly like minting.

From the browser

If you’re already signed in, you don’t need the JWT step at all — the mint endpoint also accepts your session cookie, so this works straight from the browser devtools console on a CollMap tab:

await (await fetch(`/api/rooms/${ROOM}/api-tokens`, {
  method: 'POST',
  credentials: 'include',
  headers: { 'Content-Type': 'application/json' },
  body: JSON.stringify({ name: 'my-script', permissions: ['read', 'write', 'upload'] }),
})).json();
// → { token: "cmap_…", id: "…" }

Handy for a one-off token without setting up a script. It’s the same endpoint and the same owner-only rule — only the way you prove who you are differs.

Caution

The token secret is shown once, at creation. If you lose it, revoke it and mint a new one.

Permissions

Mint a token with only what it needs:

Permission	Lets the token…
read	Read the room (metadata, markers, layers, comments, raster) and export it
write	Import, add markers (single + bulk), update and delete markers, create layers, edit layer style, comments, raster display
upload	Upload layer files (GeoJSON / zip / gpkg / GeoTIFF)

Tip

The most common mistake: a read-only token gets 403 when it tries to send data. Include write and/or upload if you’re pushing data.

What a token may call

A token is accepted only on these room-scoped data endpoints — everything else returns 403 api_token_not_allowed:

Permission	Endpoints
read	GET /api/rooms/:roomId, .../info, .../markers[/:markerId], .../marker-icons, .../comments, .../raster-layers[/:layerId]; GET /api/layers/:roomName; POST .../export, .../export-jobs, GET .../export-size, .../export-jobs/:id[/artifact], .../export-manifest
write	POST .../layers (inline GeoJSON), .../markers (single create), PATCH .../markers/:markerId, DELETE .../markers/:markerId (any marker — see below), .../import, .../bulk-import, .../clone-jobs, .../comments[/:id/replies], PATCH .../comments/:id, DELETE .../comments/:id[/replies/:rid] (own comments only), PATCH /api/layers/:layerId, PATCH .../raster-layers/:id/display, POST .../markers/upload-image, POST .../marker-icons
upload	POST /api/layers/upload, .../upload-chunk, .../process-chunked
(any token)	Job polling (GET /api/layers/jobs/:id, /api/jobs/:id), tiles, layer feature reads, marker-image redirect

`write` lets a token change or remove any marker

PATCH and DELETE on a marker are not restricted to markers the token created — a write token can edit or delete any marker in its room, including ones people added by hand. (Comments are stricter: a token may only delete replies it authored.) Give a token write only where that is acceptable, and prefer a separate token per integration so one can be revoked without disturbing the others.

What a token cannot do

These are owner/admin operations — do them as the owner (in the app, or with your owner JWT). They return 403 api_token_not_allowed on purpose:

• Create / delete / clear / rename a room; toggle public; camera & timeline settings
• Invite / remove members; mint, list, or revoke tokens
• Read account / usage (/api/account), admin routes, register-user, /users/me
• Delete a layer or raster layer

The room must already exist (created by the owner); the token operates within it.

Next

Head to the Quick Start for a full copy-paste walkthrough.
